Contactor – Construction, Operation, Application and Selection

An electrical contactor is a switching device, widely used for the switching of motors, capacitors (for power factor correction) and lights. As the name indicates it is used to make or break contacts as like an ordinary on-off switch. The only difference is that the contactors have an electromagnet that holds the contacts when energized whereas switches do not have it.

Their basic principle of operation is the same as that of electromechanical relays. The difference is that contactors are designed to can carry much more current than relays. Relays cannot be directly used in circuits where the current exceeds 20 amperes. In such conditions, contactors can be used. They are available in a wide range of ratings and forms. Also, they are available up to the ampere rating of 12500A. They cannot provide short circuit protection but can only make or break contacts when excited.

Constructional features

A contactor consists of an electromagnet, a set of power contacts and a spring enclosed inside an enclosure. Some of them have built-in economizers, that can reduce power consumption in their coils. Certain arrangements for arc extinction is also made inside for making and breaking the operation.

Electromagnet Coil

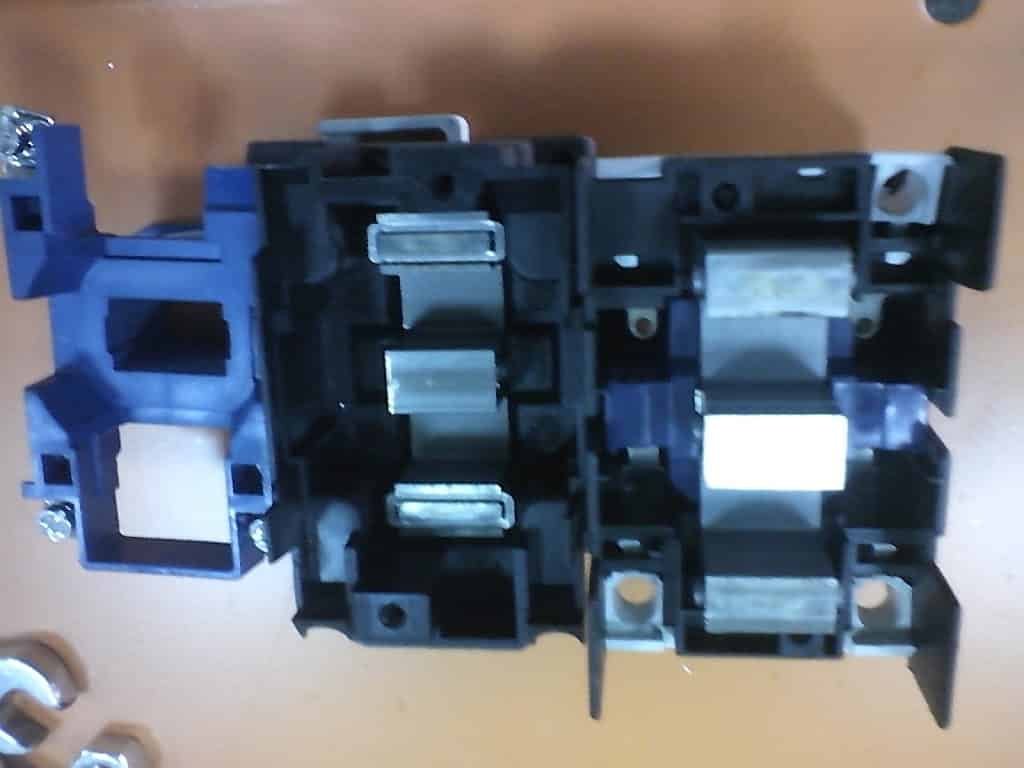

Conventional Low voltage contactor coil
Conventional Low voltage coil

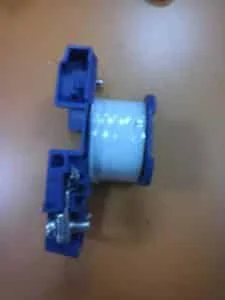

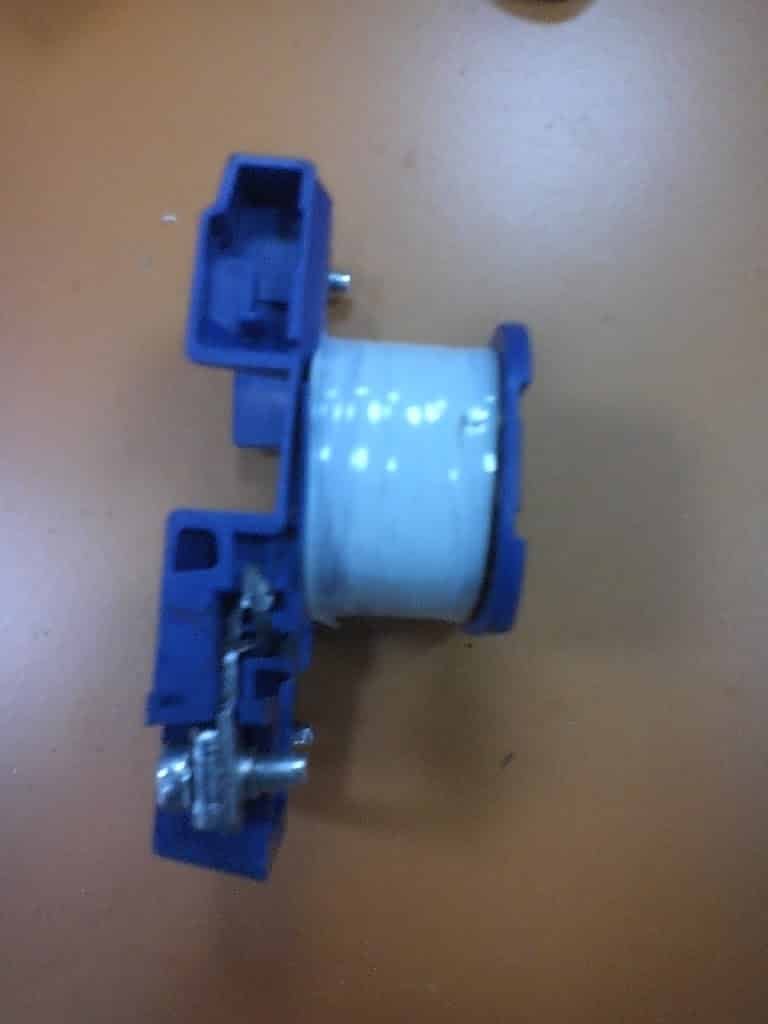

Hollow Cylindrical Type Coil
Hollow Cylindrical Type Coil

An electromagnet is a key component without which contactors cannot function. It requires an additional supply for excitation. It drains negligible current from the supply during excitation. These electromagnets will be hollow cylindrical in shape. A rod (armature) with a spring return arrangement will be placed in the hollow cylindrical electromagnet.

In some contactors, this electromagnet is split into two halves. One of the halves is fixed and the other is movable. Movable power contacts are fixed to the movable electromagnet. Under normal condition, these two halves of electromagnets are held apart using a spring in between.

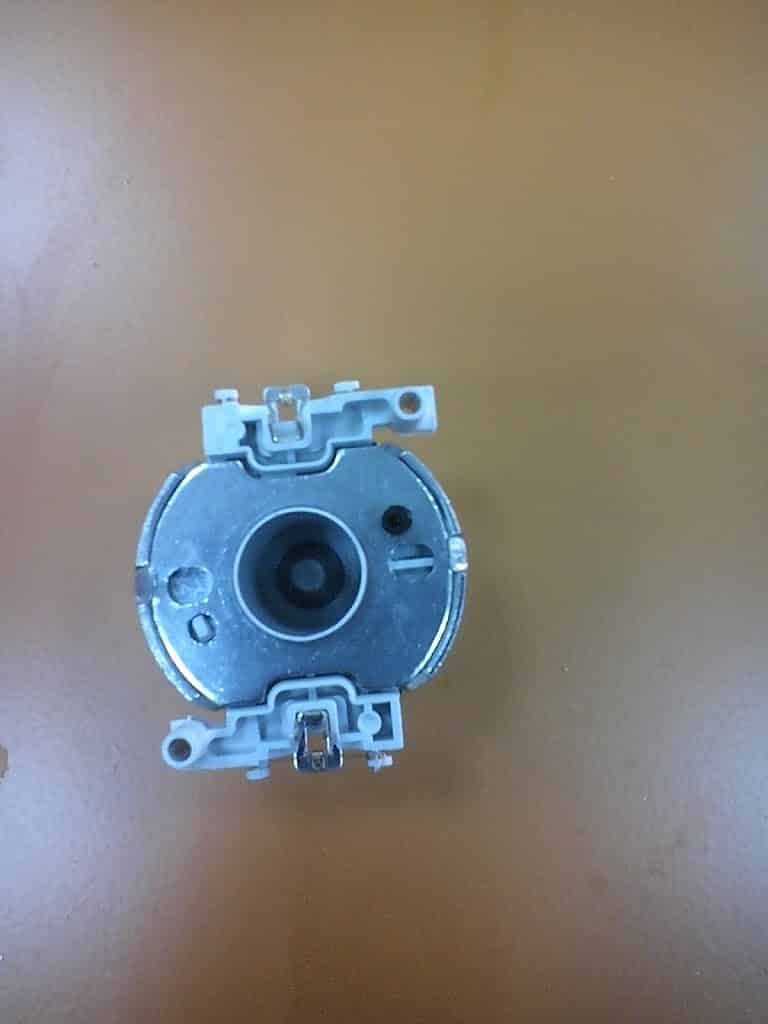

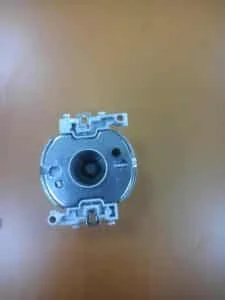

Conventional laminated soft iron Magnetic Core
Conventional laminated soft iron Magnetic Core

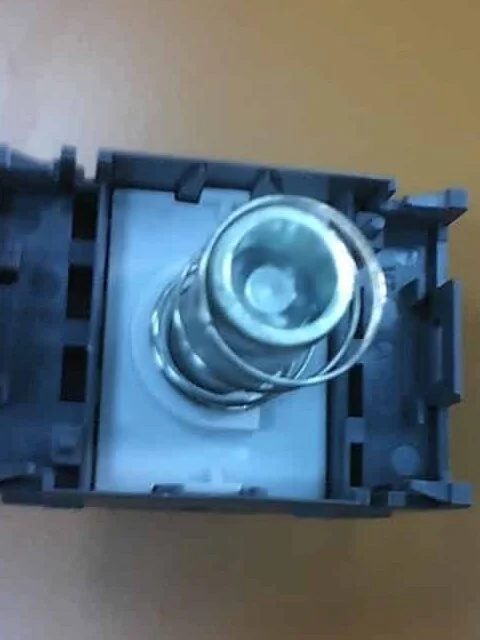

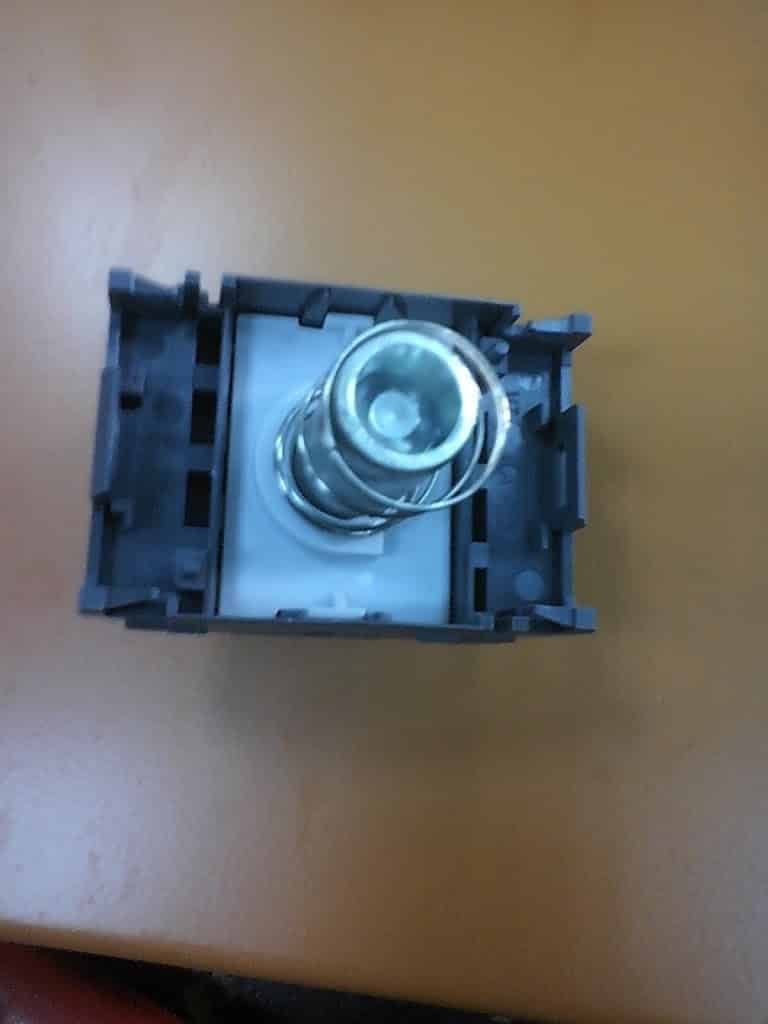

Solid Steel Core
Solid Steel Core

Different types of electromagnetic core arrangements in contactors are shown above. In those with AC coils, the electromagnetic core is made up of laminated soft iron to reduce eddy current losses and in those with DC coils, the electromagnetic core is made up of solid steel/ soft ironic core since there is no risk of eddy current loss in DC.

Contacts

A typical contactor consists of two sets of contacts, of which one is stationary and the other is moveable. Silver tin oxide (AgSnO2), silver nickel (AgNi) and silver cadmium oxide (AgCdO) are the normally used contact materials. These materials have high welding resistance and stable arc resistance. Contacts made of silver cadmium oxide and silver nickel are used in contactors of less ampere rating whereas contacts made of silver tin oxide is used in those of high ampere rating and in DC contactors.

The movable set of contacts is attached to the armature or movable electromagnet. Contact material must withstand mechanical stresses, arcs, erosion and must have very low resistance.

Enclosure

Electromagnet and contacts are packed inside an enclosure made of plastic, ceramic or Bakelite, which protects it from dust and external environment and ensures safe opening and closing of contacts.

Arc Suppressor

Arc extinction is one of the key functionalities of a contactor. AC arcs can be easily extinguished since it passes through zero twice for every cycle. Hence arc suppressors can do the job. But in the case of DC arcs, magnetic blowouts or specially designed arc chutes for arc extinction are necessary. Depending on the application, various arc suppression arrangements are made in contactors out of which arc chutes are one of them.

Economizer circuit

An economizer circuit is the one used to reduce the power consumed by the coil. An economizer circuit supplies a high current during pickup and later it supplies adequate power to keep the contacts closed. It is not mandatory that all of them must have an economizer circuit.

Symbol of contactor

Symbol of contactor

In the above picture, A1 and A2 are terminals for control power supply or coil supply. Terminals 1-2, 3-4 and 5-6 are for power supply. The load is connected to power supply terminals.

Working principle of contactors

Whenever the electromagnetic coil is energized, an electromagnetic field is produced. This electromagnetic field attracts the metallic rod (armature) towards the gap in the hollow cylindrical magnet.

In contactors with split electromagnets, the movable half of the electromagnet is attracted towards the fixed electromagnet. This action closes the contacts. The contacts remain closed as long as the electromagnet remains excited. When the coil is de-energized, moving contact is pushed back to its normal position by the spring. The contacts are kept spring loaded in order to open and close contacts rapidly. Moving contacts may bounce as it rapidly makes contacts with the fixed contacts. Twin or bifurcated contacts can be used to avoid bouncing and improve reliablity.

The excitation power to the coil can be either AC or DC (available in various voltage ranges starting from 12Vac/ 12Vdc to 690Vac) or even universal. The universal coils are the ones that can operate on AC as well as DC voltages. A small amount of power is drained by the coil during the switching operations. Economiser circuits are used to reduce the power consumed by the contactor during its operation.

Contactors with AC coils have shading coils. Otherwise, they may chatter every time the alternating current crosses zero. Shading coils delay demagnetization of the magnetic core and avoids chattering. Shading is not required in DC coils as the flux produced is constant.

Arc Suppression

Arc occurs between the contacts every time when contacts are closed or opened under load. The electric arc formed while the breaking of a load are highly destructive and may damage the contacts. In addition to that, the high temperature of the arc degrades the gases surrounding the contacts and forms harmful gases such as carbon monoxide, ozone etc. This may affect the mechanical durability of the contactors. Several arc suppression techniques are adopted for the control and extinction of arcs. One of the most common methods is by using arc chutes. Know more about arc chutes: What is an arc chute?

DC contactors

DC contactor
DC contactor

As mentioned earlier, DC arcs are more severe when compared to AC arcs. In DC contactors magnetic blowouts are used to propagate the arcs towards specially designed arc chutes and extinguish them by splitting it. In those contactors used in low voltage AC applications (690Volt or less), atmospheric air surrounding the contacts extinguishes the arc and in medium voltage and high voltage applications vacuum contactors are used to avoid the risk of arc.

Vacuum contactor
Vacuum Contactor

Categorization

Few important IEC utilisation categories are below:

Contactors are categorised based on the type of load (IEC utilisation categories – IEC 60947) and current and power rating (NEMA size).

  • AC-1: Non-inductive or slightly inductive and resistive heating type of loads
  • AC-2: Starting of slip ring induction motor
  • AC-3: Starting and switching off Squirrel-cage motors during the running time
  • AC-15: Control of AC electromagnets.
  • AC-56b:- Switching of capacitor banks
  • DC–1: Non-inductive or slightly inductive and resistive heating type of loads
  • DC-2: Starting, inching and dynamic breaking of DC shunt motors
  • DC-3: Starting, inching and dynamic breaking of DC series motors
  • DC-13: Control of DC electromagnets

NEMA sizing

NEMA size is based on the maximum continuous current and horsepower rating of the induction motor controlled by the contactor. Under NEMA standard contactors are designated as size 00,0,1,2,3,4,5,6,7,8,9.

Application of contactors

Motor Starters:

Starter Circuit-DOL
DOL-Motor Starter

Contactors are used in motor starter either Direct-on-line or Star Delta along with thermal overload relays or motor protection circuit breakers. Even in our homes, one can find it inside the pump starters. Normally in a motor stater circuit, they are used for switching, along with overload relay and short circuit protection devices.

The figure shows a 3 phase contactor connection diagram of a DOL starter.

Read more: Difference between overload and short circuit

Switching of capacitor Banks

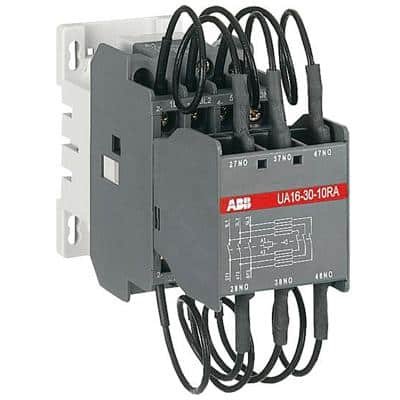

In capacitor banks, capacitor switching contactors are used to switch capacitors based on the reactive power requirements. They are specially designed to control high transient currents formed during switching. Additional resistors are provided to reduce inrush currents while switching.

Lighting control

Contactors are also used in the switching of street, commercial and residential lights. They are commonly used in timer controlled lighting systems. Latch type contactors are also available. In this type, two coils will be present, one of them for opening the contacts and the other for closing. Closing coil closes the contacts, when excited and cuts off the supply to the coil. Contact is then held closed mechanically. The second coil is used for opening the contacts.

Selection of contactors

Contactors are selected based on the following:

  • Application-based on IEC utilisation category.
  • Load current and voltage.
  • Control voltage available – For selecting coil voltage.

Read more on DOL starter sizing

How to check a contactor?

A contactor can be checked whether it is “open” or “closed” using an ohmmeter or a multimeter. If the resistance measured between the input and output terminals is infinite then the contacts are opened and if the ohmmeter reading is zero then it denoted that the contacts are closed.

Reference
